PVC Cable Pelletizing Machine
We can provide PVC recycling machine solution according to your requirement.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
PVC Cable Sheath Scraps Recycling Machine
Product Introduction
We can provide PVC recycling machine solution according to your requirement.
Product parameter(specification)
|
Model |
KH-110 |
KH-120 |
KH-130 |
KH-140 |
KH-150 |
KH-160 |
|
Capacity (kg/hr) |
250--350 |
300--400 |
350--450 |
400--500 |
500--600 |
600-700 |
|
Motor (kw) |
45KW |
55KW |
75KW |
90KW |
110KW |
132KW |
|
Note: all of machines is customized , any changes in raw material and configuration will affect the capacity. Please contact us for your customized solution. |
||||||
Product feature and application of PVC
Because soft PVC has softness and plasticity, it is often used to make a variety of soft products, such as plastic bags, plastic pipes, plastic films, plastic shoes, plastic toys and so on. Hard PVC is often used to make a variety of hard products, such as pipes, window frames, door panels, wall panels, floors, wires and cables.
Advanatges of the PVC granules machine
Less manpower
With high automate design, just need 1-2 workers for the whole Soft PVC granulator machine.
Lower electricity consumption
With a special circuit design, the electricity consumption of the machine will be 5% lower than that of our peers.
Wasted Polyvinyl chloride Solution Line Working Procedure
Crushed PVC scraps→belt conveyor →quantitative feeder→mother extruder →first filter →baby extruder→second filter →cooling tank →pelletizing system →air transmission→silo storage

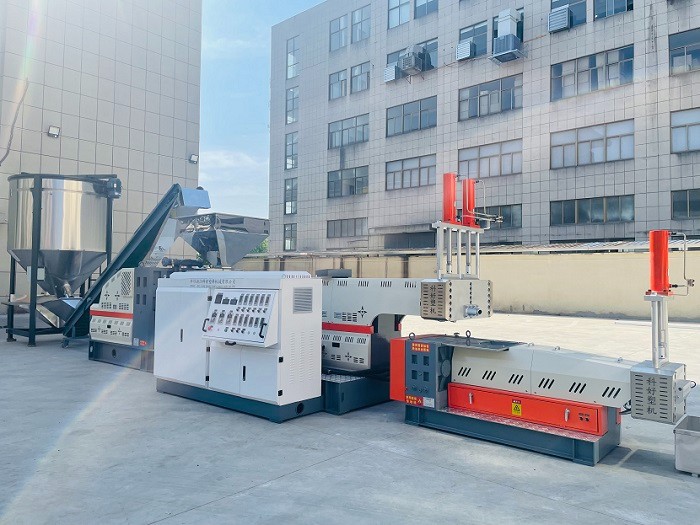

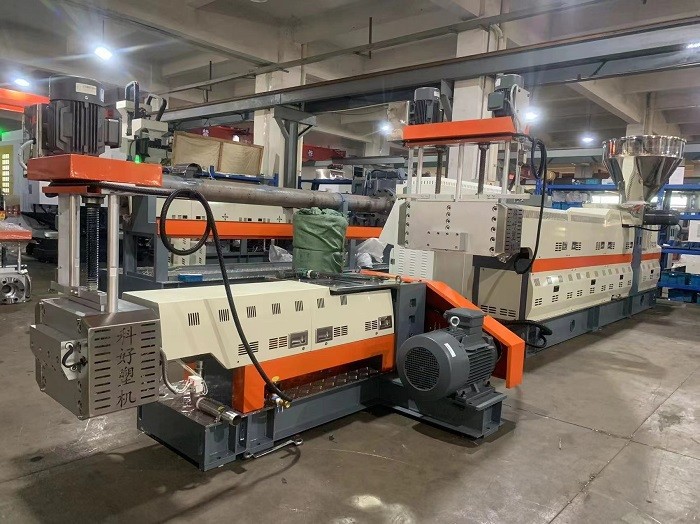

Double Stage PVC Recycling Machine Detail
As special design, plastic scraps is conveyed into the feeder by belt, the machine is equipped with the strong magnetic for removing the iron to protect the screw.
The special design allows the feeding speed to match the speed of the screw. To reduce the wear of screw between raw material.
We have more than 20 years of experience in screw designing, because there are enough customer cases, plastic are processed by the good screw, the machine can be worked with good balance of plastic plasticization and production, for wet material , the machine is equipped with good degassing system.
In water-ring cutting system, the rotary blades will be closely to the die-face surface to ensure efficient cutting. the speed of the blades is automatically adjusted by inverter according to actual working condition.
Vertical centrifugal dehydrator rotates at high speed to get rid of excess water with low energy consumption, high efficiency.
The vibration machine is used for vibrating and drying different size of granules, It can make the pellets more uniform and more attractive
The finished granules will be blown into the tank by the high pressure fan, it will be greatly reduce the labor, it is more convient.
