PE Granulation Line
We can provide customized hard PE recycling machine according to your requirement.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
PE pellets making Machine
Product Introduction
We can provide customized hard PE recycling machine according to your requirement.
Product parameter(specification)
|
Model |
KH-110 |
KH-120 |
KH-130 |
KH-140 |
KH-150 |
KH-160 |
|
Capacity (kg/hr) |
100--200 |
150-250 |
250-350 |
300-400 |
350-450 |
400-500 |
|
Motor (kw) |
45KW |
55KW |
75KW |
90KW |
110KW |
132KW |
|
Note: all of PE machines is customized , any changes in raw material and configuration will affect the capacity. Please contact us for your customized solution. |
||||||
Product feature and application
Widely used in various containers, bottles, gasoline tanks and daily necessities. These products are commonly used to hold cleaning agents, chemicals, cosmetics, etc., such as blow molding barrels, containers, and bottles. In addition, there are blown film products, such as food bags, grocery bags and fertilizer lined film. These products are widely popular because they are lightweight, durable and cost-effective.
Advanatges of the PE granules making line
Less manpower
With high automate, just need 1-2 empolyeers for the whole PE scraps recycling line.
Low power consumption
The electricity consumption is less 15% compared with other companies cause of special electricity design.
Wasted Polythene Solution Line Working Procedure
PE scraps→belt conveyor →quantitative feeder→mother granulator →first filter →baby granulator→second filter →cooling tank →pelletizing system →air transmission→silo storage

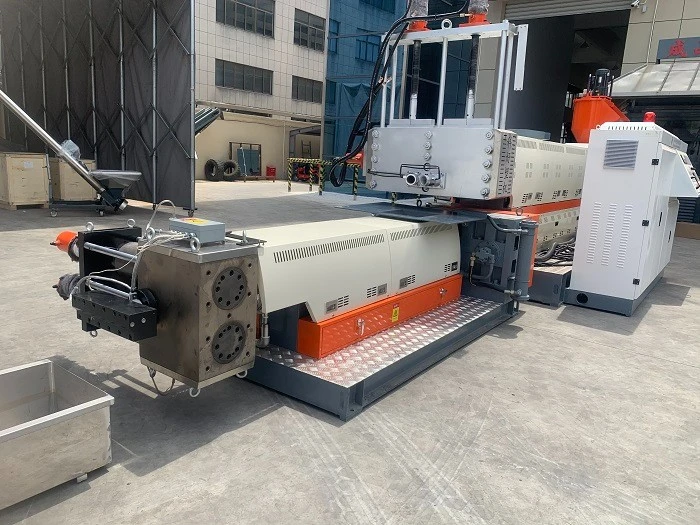

Double Stage PE Pelletizing Machine Detail:
As special design, plastic scraps is conveyed into the feeder by belt, the machine is equipped with the strong magnetic for removing the iron to protect the screw.
The special design allows the feeding speed to match the speed of the screw. To reduce the wear of screw between raw material.
We have more than 20 years of experience in screw designing, because there are enough customer cases, plastic are processed by the good screw, the machine can be worked with good balance of plastic plasticization and production, for wet material , the machine is equipped with good degassing system.
The strand cutting type is widly used in mostly wasted material, cut the strips evenly through the high speed rotation of the hob. The plastic pelletizer is popular by domestic and foreign customers because of its good performance and low noise.
The vibration machine is used for vibrating and drying different size of granules, It can make the pellets more uniform and more attractive.
The finished granules will be blown into the tank by the high pressure fan, it will be greatly reduce the labor, it is more convient.
